340XRiLV

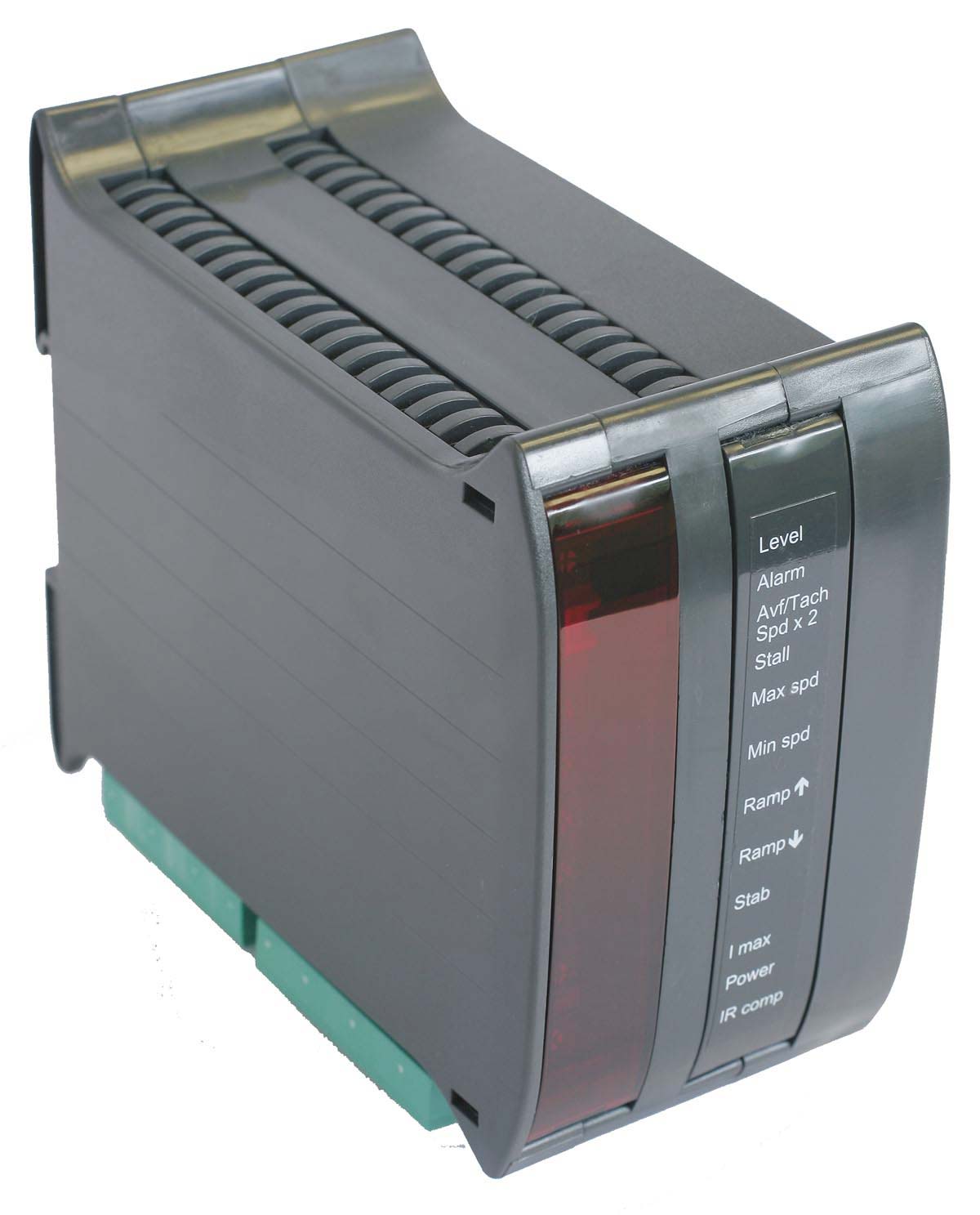

Ultra compact DIN rail mounted 4Q DC Drive. Isolated electronics providing up to 3.4A output current. Low voltage 30V-60VAC option providing 24-48V DC output voltage.
Technical Data
The 340XRiLV is one of the Sprint Electric 340/680/1220 SERIES of products
Ratings
| AC Supply Range | Typical Max Armature Voltage | Max Continuous Armature Current | Nominal Power |
|---|---|---|---|
| 100 to 130v | 90v | 3.4A | 0.25KW / 0.35HP |
| 200 to 264v | 180v | 3.4A | 0.55KW / 0.75HP |
Dimensions
| Height | Width | Depth |
|---|---|---|
| 105mm | 60mm | 120mm |
AT A GLANCE
-Fully isolated control electronics
-340i controller for DC motors rated up to 3.4 Amps (0.55KW/0.75HP)
-DIN rail mounting
-Easy to access drive adjustments
-Plug-on screw terminals
-Small footprint
-UL, CuL, CE approved
TECHNICAL HIGHLIGHTS
-Switch selectable Tach or Armature voltage feedback
-Adjustable IR compensation for improved AVF speed regulation
-Selectable dual voltage ac supply
-150% overload with stall protection
-Push-button reversing function
USER ADJUSTABLE
-Max motor speed
-Min motor speed
-Up ramp
-Down ramp
-Stability
-Imax
-IR comp
-AVF/Tach switch
-Speed range switch
-AC voltage selector
-Signal level comparator
SIGNAL TERMINALS
-+10V ref
-Min speed
-Ramped Input+
-Output +/-
-Common
-Input +/-
-Pushbutton +
-Pushbutton –
-Run input
-Common
-Tach input
-Level output
-Level input
-Overload output
-Trip output
-Ramp output
-Demand output
-Speed output
-Current output
— +Speed input
-Torque input
Datasheets
Single Phase DC Motor Control Product Catalogue
A4 catalogue of our range of single phase DC motor controllers
HA105134 v5
340XRi 680XRi 1220XRi Manual
340XRi 680XRi 1220XRi Product Manual by Sprint Electric - HG105268EN00 Issue 1-v2
Where DC Digital Drives are used
Sprint Electric Guide Where DC Digital Drives are used
