DC & AC SLIP RING DRIVES PRODUCT FAMILIES

Sprint Electric manufactures a wide range of Drives systems, from 100W output power up to 1MW! Check out the product families below.

PL/X Series

The PL/X series DC Drive is a fully digital DC drive system providing 5kW – 980kW output power. Available in 2Q (single direction) and 4Q (fully regenerative) variants, the range comprises 5 compact chassis sizes with models rated from 12A to 2250A output current. The PL/X boasts an extremely versatile operating input voltage range of 12V – 500VAC as standard. Options are available for 600V and 690VAC input.

The PL/X boasts the best power density from any comparable DC Drive on the market. All models include a 40-character alphanumeric backlit display that makes it easier to quickly navigate through an extensive range of software functions.

More

JL/X Series

The JL/X series AC Drive is a fully digital drive system providing 45kW – 975kW output power to control AC slip ring motors. The JL/X is designed for retrofit applications on cranes, material handling, hoists, pumps, compressors & conveyors.

Available in 2Q (single direction) and 4Q (fully regenerative) variants, the range comprises 3 compact chassis sizes with models rated at 150% overload (standard) or 250% overload (high duty).  The JL/X boasts an extremely versatile operating input voltage range of 12V – 500VAC as standard. Options are available for 600V and 690VAC input.

All models include a 40-character alphanumeric backlit display that makes it easier to quickly navigate through an extensive range of software functions.

More

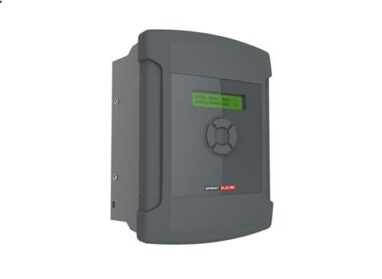

PL/XD Series

The PL/XD is used for controlling external 3-phase thyristor stacks for DC motors and slip-ring motors. It possesses the same functionality as the PL/X range, except that the output power stage is not included.  The PL/XD uses the same frame size as the PL/X 5 – 50 model and hence is extremely compact.  The PL/XD makes an extremely economical solution for users of very large power DC motors wishing to separate the control and power modules.  The PL/XD provides all the world-class control features of the PL/X series.

More

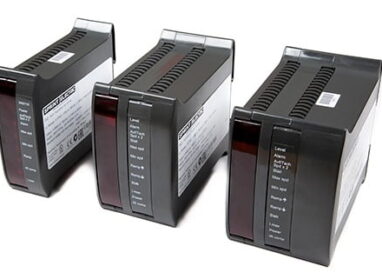

340/680/1220 Series

The 340/680/1220 Series comprises ultra compact DIN rail mounted 1Q or 4Q DC Drives.  This comprehensive range offers both non-isolated and isolated drives up to 12.2A output current, suitable for DC motors up to 1.8kW (2.0Hp) output power.

The product range is available with a wide range of input voltage options, from the standard 110 – 240VAC through to 30V – 60VAC options that can provide output voltage down to 24VDC.  The 340/680/1220 Series is an ideal low-cost drive solution to control small brushed or permanent magnet DC motors.

More

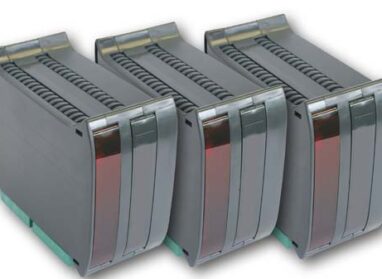

XLV series

The XLV Series is a fast response, linear DC motor speed controller for driving small low voltage brushed DC motors from 2A – 12A output power. The XLV will motor and brake in both directions of rotation and operates from a single polarity supply, either battery or unregulated DC Source. Excellent performance allows the XLV series to meet the most demanding of applications. The extensive specification includes many standard features not normally associated with a drive the size and cost of the XLV.

More

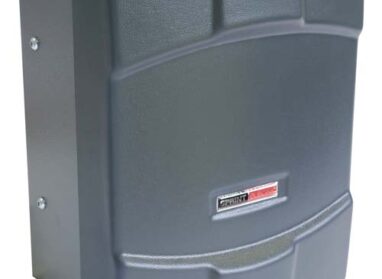

SL Series

The SL Series comprises a range of analogue 2Q / 4Q DC Drives delivering output current up to 330A to control motors up to 145kW.

For users who prefer or require analogues control loops, the SL Series provides an economical, compact and reliable control platform.

The SL/X range provides 2Q / 4Q operation across 11 models from 5kW – 145kW output power.

The SLE Series is a single direction 2Q DC Drive with 4 models from 14kW – 44kW output power.

More

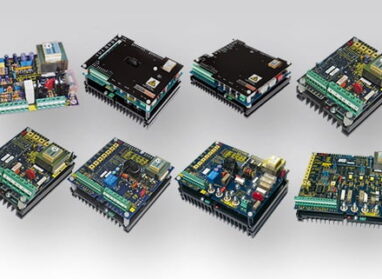

Open Chassis-Mount DC Drives

The 370/400/800/1200/1600i/3200i/3600i analogue DC Drives provide a huge variety of design options, from low cost non-isolated 1Q drives through to 4Q fast-response speed & torque control drives.

The 370 DC Drive provides a low cost 1Q option for motors rated up to 3.7A output current (0.55kW motor power). The 370 is available with 110-240VAC input as standard and a 30-60VAC low voltage option providing 24 – 48VDC output.

More
